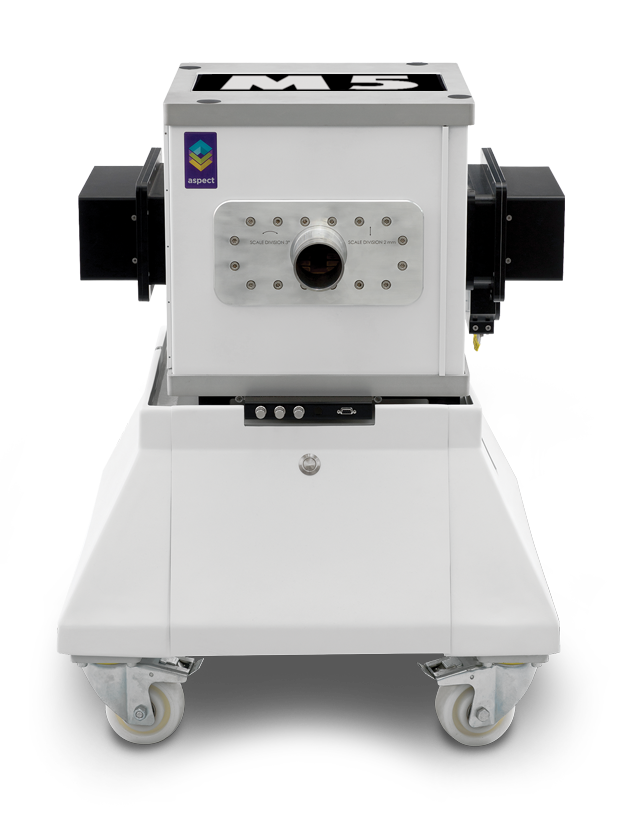

The M5™ compact, high-performance MRI system is designed with a larger bore opening for dedicated imaging of both mice and rats. The system provides non-invasive 3D anatomical, functional, and molecular read-outs in rodents and ex vivo samples.
The system’s small footprint and lightweight design enables flexible placement where it is needed most, even behind the bio-containment barrier for in vivo imaging.
| Strength | 430 (X,Y,Z) mT/m @ 60 A |
|
Linearity (for Entire Imaging Volume) |
Better than 5% |
| Slew Rate (T/m/s) | 1720 T/m/s @ 60 A / 250 us |
| Spin Echo |
2D DWI – with diffusion gradients IR – with preceding inversion pulse |
| Fast Spin Echo |
2D and 3D DWI – with diffusion gradients IR – with preceding inversion pulse |
| Gradient Echo | 2D and 3D |
| IRSnap | GRE based with multiple inversion time |
| DCE | GRE based Dynamic Contrast Enhancement |
| Cardiac Cine | GRE based ECG triggered Cine |
| DTI | FSE based diffusion tensor imaging |
| Dixon | FSE based fat separation |
| Field of View |
90 x 90 x 60 mm3 spheroid |
|
Dimensions (Height x Width x Depth) |
1760 x 600 x 1150 mm / 69.3 x 23.6 x 45.3 in |
| Weight | 300 Kg / 660 Lbs |
| Dimensions (Height x Width x Depth) |
1133 x 800 x 800 mm / 44.6 x 31.5 x 31.5 in |
| Weight | 950 Kg / 2095 Lbs |
|
Magnet Opening: Flange Insertion Diameter Inner Bore (Height x Width) |
No insertion flange in MS (the bore is open) 76 x 200 mm / 3.0 x 7.87 in |
| Imaging Volume | 90 x 90 x 60 mm3 spheroid |
| B° (Tesla) | 1.0 T |
| Operator Station |
Requires an electrical outlet with the following specifications: 120/230 VAC, single phase, 3 A 50/60 Hz |
| Line Voltage |
• 220-240 VAC, 15 A, single phase in countries using 220-240V • 208 VAC, 15 A, single phase in countries using 120V |
